A parametric tool generate 2D knittable bitmap from 3D geometry

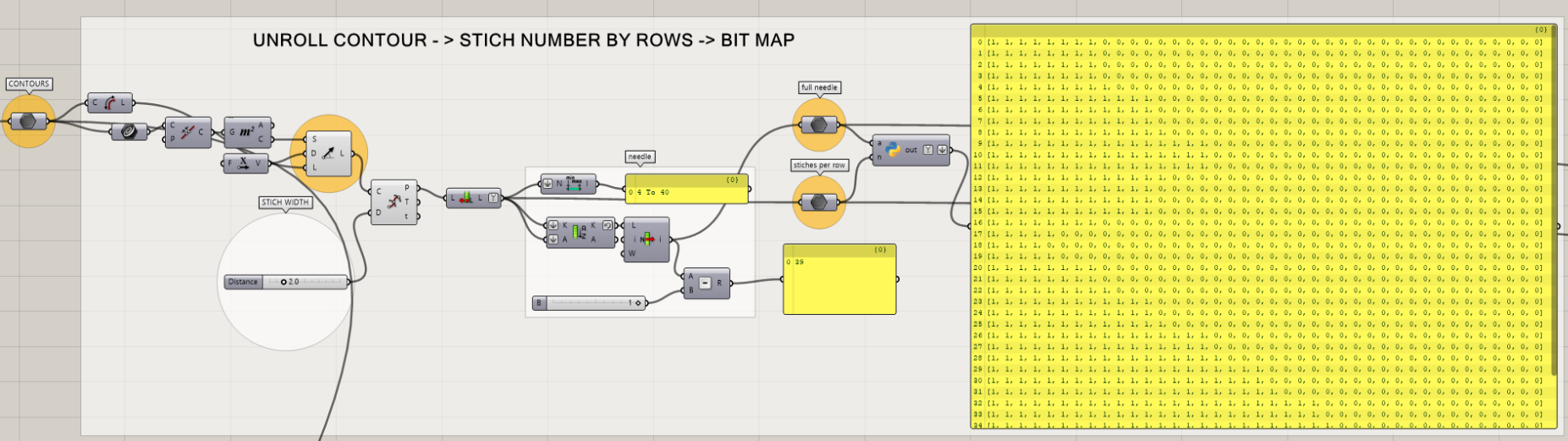

Designed 3D Geo -> Contours based on stitch height -> Unroll Contours -> Generate Stitches Number by Rows -> Bitmap

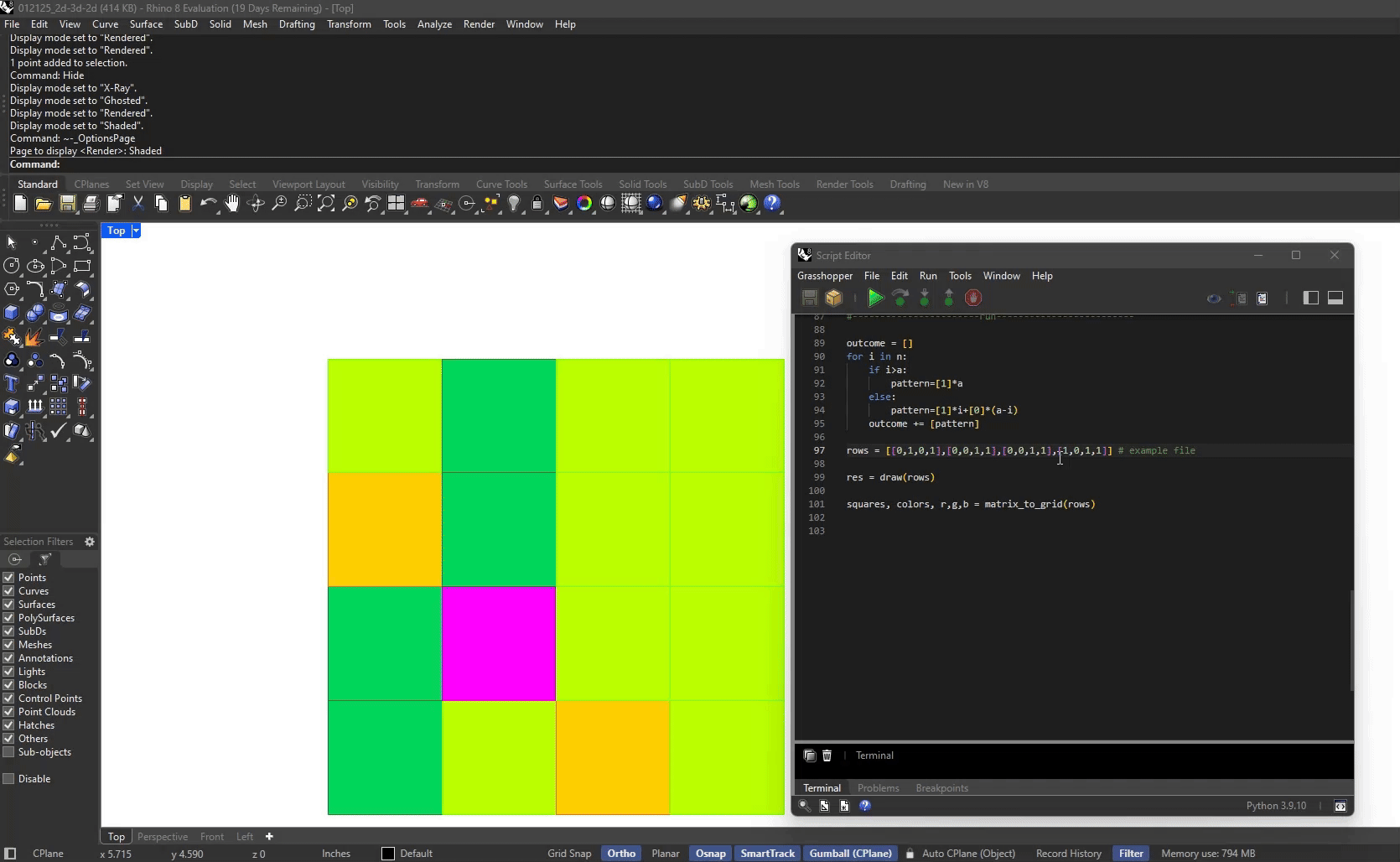

Transfer Stitches Number by Rows to a (0,1) Matrix with Full Needles Number: ‘1’ represent 1 stitch, ‘0’ represent no stitch

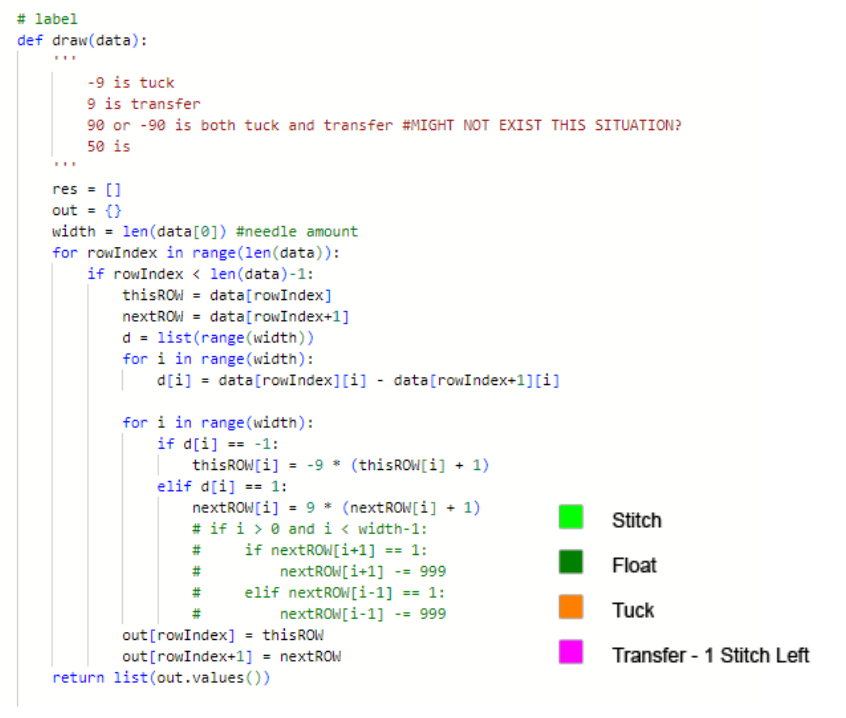

After know where has stitch (Stitch) and no stitch (Float) , start to identify where is Tuck and Transfer based on comparison between the current row and the next row.

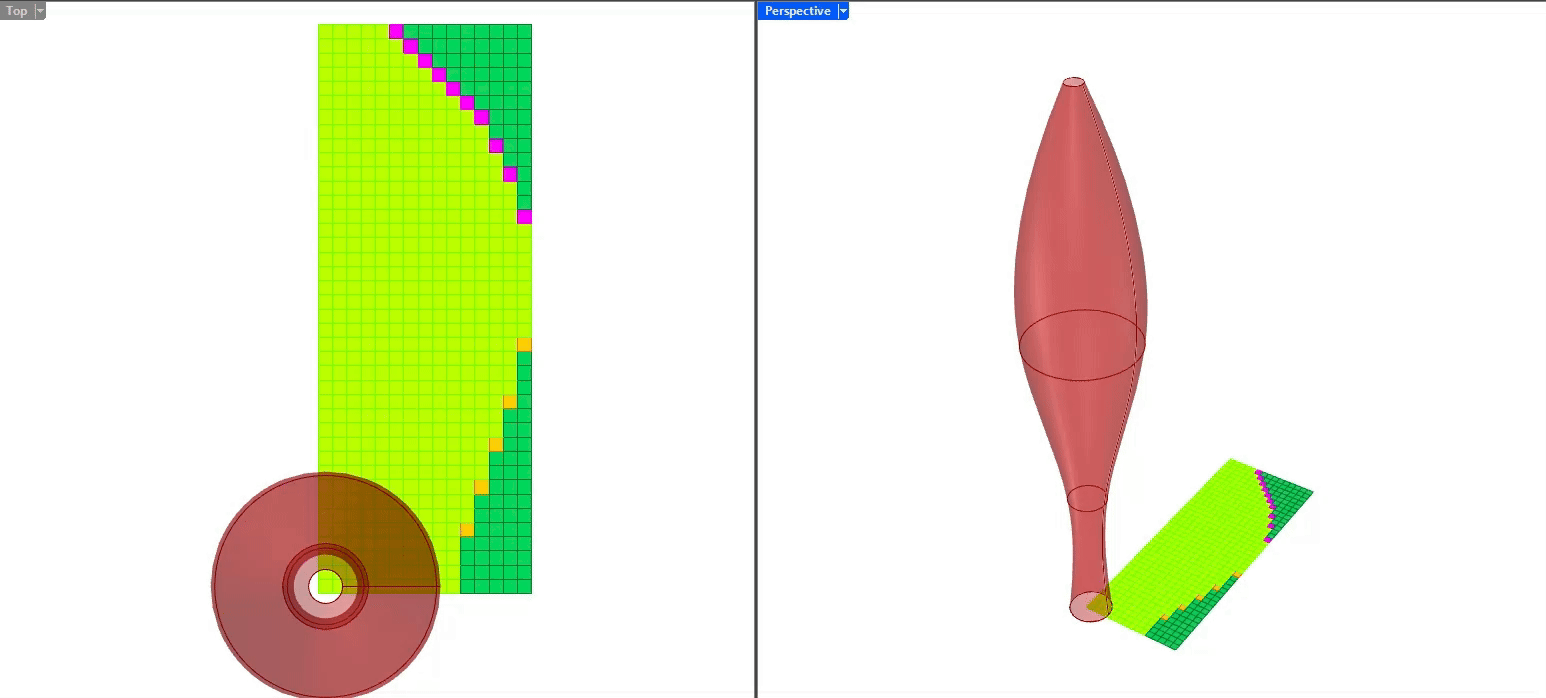

3D model to Bitmap - sync bitmap to design
